China UWNTEK UW5212 16-Channel Large Signal Analog Input Module realizes 16-channel 0-20mA, 4-20mA, 0-5V, 1-5V, 0-10V analog input signal type selection, program-controlled amplification, data conversion, fault diagnosis, and digital filtering , linear correction, engineering conversion, etc.

UWNTEK high quality UW5211 16-Channel HART Analog Input Module realizes program-controlled amplification, data conversion, fault diagnosis, digital filtering, linear correction, engineering conversion and other functions of 4~20mA analog input, and supports HART device communication and instrument equipment management AMS Function; when HART equipment communicates, it does not affect real-time data collection and processing; the hardware configuration software has the function of an instrument equipment management system, integrating the digital signals and conventional signals of each HART field device into a unified platform, allowing users to remotely view, modify, Configure field device configuration information and record all related operations to improve maintenance efficiency.

The UW5131 Modbus Communication Module provides 4 isolated and mutually isolated RS-485 communication interfaces, supports the ModbusRTU master station protocol, and realizes direct data transmission of 4 groups of independent or 2 groups of 1:1 redundant third-party intelligent devices (with Modbus communication capabilities) Connect to UW500 field control station.

The UW5101 Distributed Control System Control Module is the core component of the control station and serves as the computing and processing center of the control station. In terms of hardware, it is composed of functional modules such as embedded industrial CPU modules, real-time data memory, redundant SNet drive units and redundant CNet drive units; software Responsible for coordinating and processing the data exchange and control operations of all functional templates within the control station, such as I/O signal processing, loop control calculations, network communication processing, redundant diagnostic interaction and other functions. Powerful data computing and processing capabilities and standard industrial-grade hardware quality ensure that various complex control strategies can be implemented quickly and stably in industrial sites.

China UWNTEK UW5156 6/8-port industrial Ethernet switch module integrates 8 isolated 100M adaptive Ethernet communication electrical interfaces, 2 of which are internally connected to the control module. The 6 channels are external RJ45 interfaces, complying with IEEE802. 3 10BASE-T and IEEE802. 3u 100BASE-TX standards, and have forwarding and switching functions.

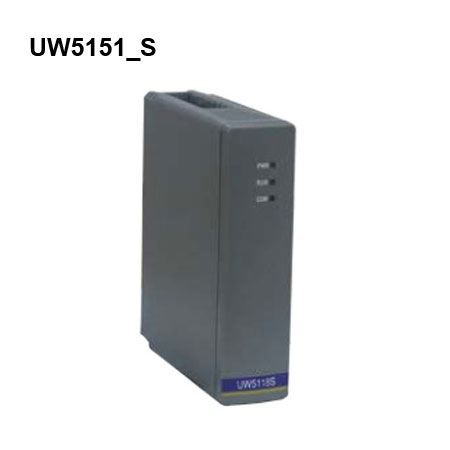

UW5151_ S Modbus safety communication module provides 4 isolated and mutually isolated RS-485 communication interfaces, supports the ModbusRTU master station protocol, and enables the data of 4 independent third-party intelligent devices (with Modbus communication capabilities) to be directly connected to the UW500/UW500s site Control station; it also supports the ModbusRTU slave station protocol and can be directly connected to the Modbus master station through any set of RS-485 interfaces.
